Description

*IN STOCK AND SHIPPING NOW*

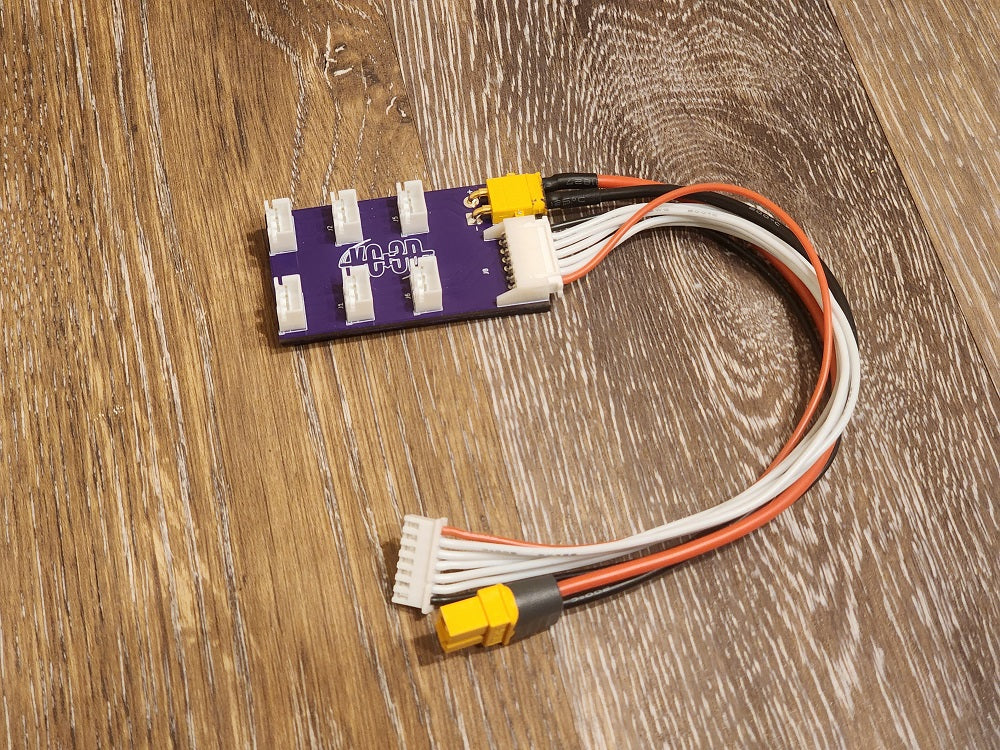

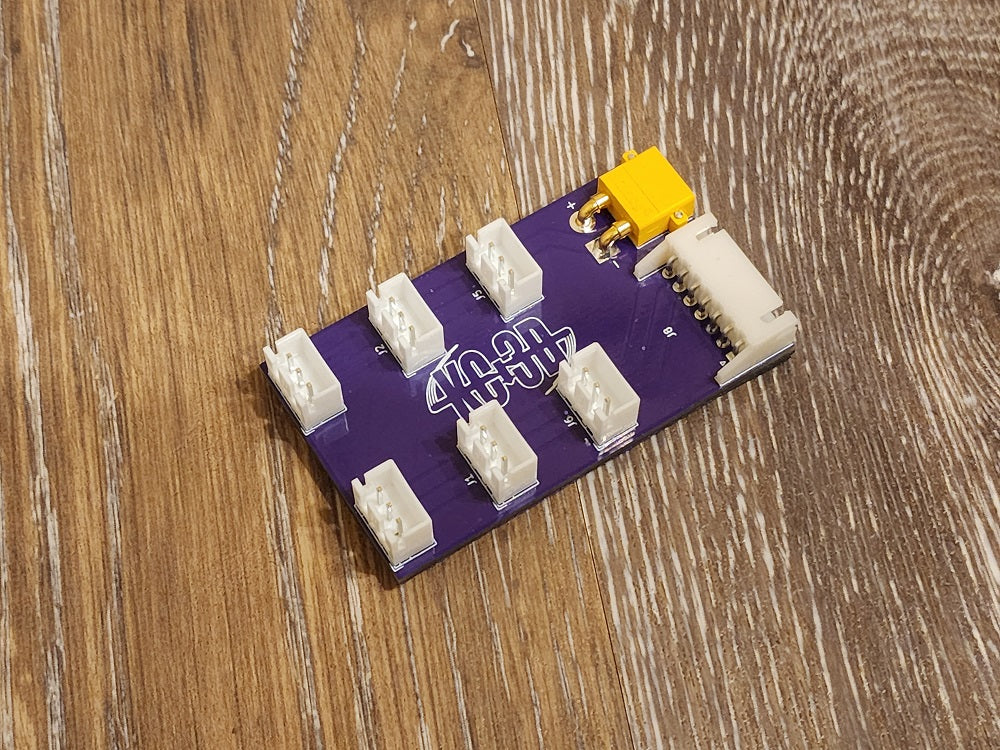

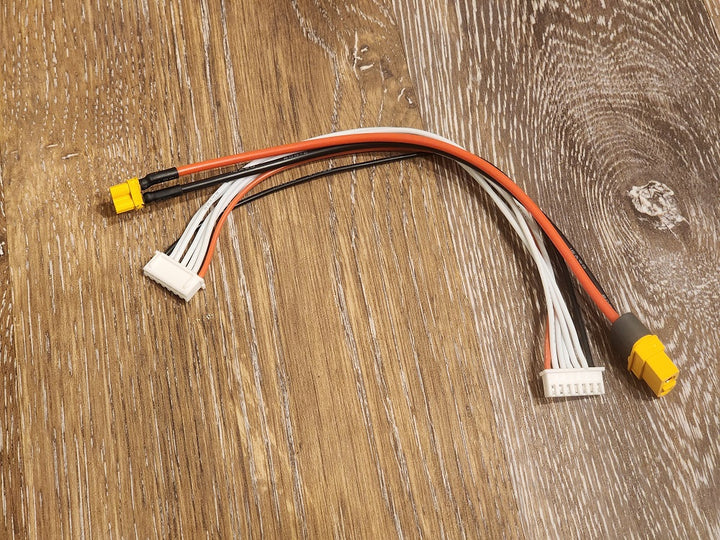

Keith At KC3D makes these superb parallel charge boards which are exclusively available here in the UK from ScotiaRC. For charging OMP M1 batteries or any other battery where you only have a 2s balance lead and no “main” charging lead such as transmitter batteries.  That is this board’s sole purpose.  Fancy purple PCB.  Soft foam backing to prevent short circuits and scratching the surface it rests on.  Comes with 6s balance lead and XT60 to XT30 adapter that will plug into most modern chargers.
If your charger uses banana connectors we have XT60 adapter cables available so you can connect this board.

IMPORTANT WARNINGS:
Do not connect batteries of cell voltage difference greater than 0.2V.  This can result in excess current flowing between the cells upon connection, potentially causing damage to the cells, the connectors, or the balance board itself.

Do not parallel charge any batteries that are suspect or questionable.  Due to the nature of parallel charging, a battery failing during the charge cycle will go unnoticed by the protection features of the charger and can cause fire and damage to property or persons. Do not charge LiPo batteries unattended under any circumstances.

Do not exceed 15A of charging current with this board.  This is a limitation of the XT30 input.  Do not exceed 3A of charging current per battery connection.  This is a limitation of the JST-XH connectors.

Do not exceed the rated charge rate (C) of your batteries. ScotiaRC recommend 0.7A max per M1 battery
